Switch công nghiệp Planet ISW-801T, 8 Cổng

10/100BASE-TX Auto MDI/MDIX Ports

8

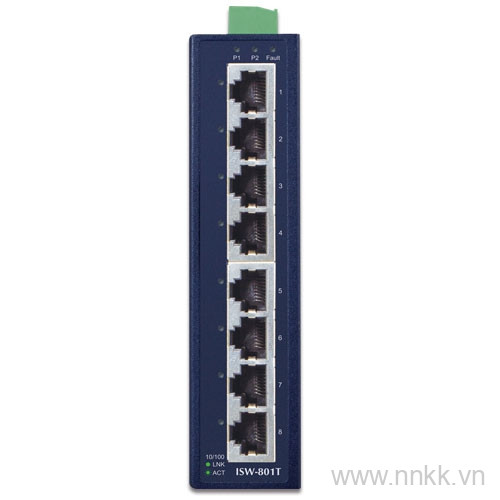

LED Indicators

3 x LED for System and Power
■ Green: DC Power 1
■ Green: DC Power 2
■ Green: Power Fault

1x LED for each Copper Port
■ Green: 10/100 LNK/ACT

Enclosure

IP30-rated metal case

Dimensions (W x D x H)

135 x 87 x 32 mm

Weight

428g

ESD Protection

6KV DC

EFT Protection

6KV DC

Power Requirements

12~48V DC, redundant power with polarity reverse protection function, 24V AC power support

Power Consumption/Dissipation

2.1 watts/7.1BTU

Installation

DIN rail kit and wall-mount ear

Alarm

Provides one relay output for power failure
Alarm relay current carry ability: 3A @ DC 30V

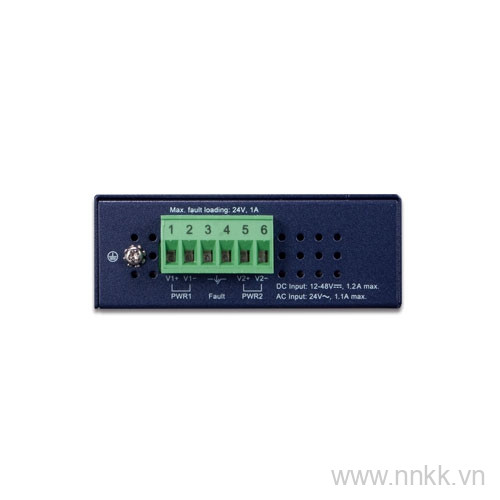

Connector

Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Switch Processing Scheme

Store-and-Forward

Address Table

1K

Buffer Memory

Embedded 448K bits packet buffer

Flow Control

Back pressure for half duplex,
IEEE 802.3x pause frame for full duplex

Switch Fabric

1.6Gbps

Throughput (packet per second)

1.19Mpps

Network Cables

10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters
100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters

Standards Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet

Temperature

Operating: -40~75 degrees C
Storage: -40~75 degrees C

Humidity

Operating: 5% to 95%, Storage: 5% to 95% (non-condensing)

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (free fall)
IEC60068-2-27 (shock-proof)
IEC60068-2-6 (vibration-proof)

ISW-801T

8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C operating temperature)
