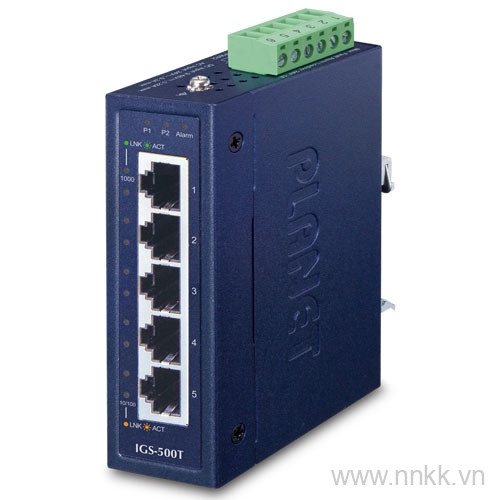

Switch công nghiệp Planet IGS-500T, 5 cổng Gigabit

Hardware Version

2

Copper Ports

5 x 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation

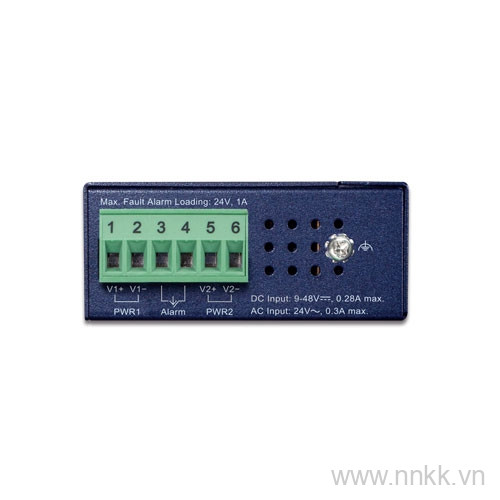

Connector

Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Alarm

Provides one relay output for power failure
Alarm relay current carry ability: 1A@DC 24V

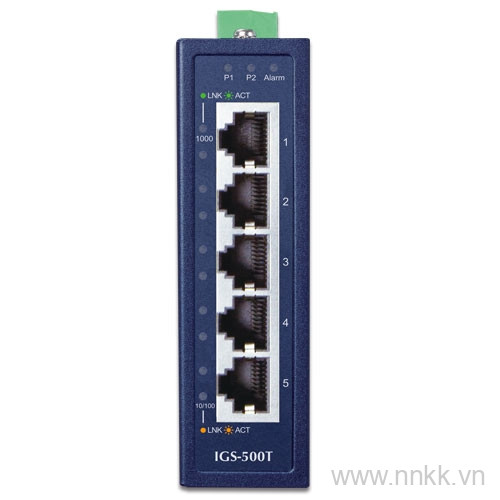

LED

3 x LED for system and power:
　Green: DC Power 1
　Green: DC Power 2
　Red: Power Alarm
2 x LED for each copper port:
　Green: 1000Mbps LNK/ACT
　Amber: 10/100Mbps LNK/ACT

ESD Protection

6KV

EFT Protection

6KV

Power Requirements

9~48V DC, redundant power with polarity reverse protection function, 24V AC power support

Power Consumption / Dissipation

1.2 watts/4.09BTU

Installation

DIN-rail kit and wall-mount ear

Enclosure

IP30 metal case

Dimensions (W x D x H)

30 x 70 x 104 mm

Weight

264g

Switch Processing Scheme

Store-and-Forward

Address Table

2K entries

Buffer Memory

4M bits on-chip buffer memory

Flow Control

Back pressure for half duplex
IEEE 802.3x pause frame for full duplex

Switch Fabric

10Gbps

Throughput (packet per second)

7.4Mpps@64bytes

Jumbo Frame

9K

Network Cables

10/100/1000BASE-T
Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters)
EIA/TIA-568 100-ohm STP (max. 100 meters)

Standards Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)

Temperature

Operating: -40~75 degrees C
Storage: -40~75 degrees C

Humidity

Operating: 5~90%, Storage: 5~90% (non-condensing)

IGS-500T

Compact Industrial 5-port 10/100/1000T Gigabit Ethernet Switch (-40~75 degrees C operating temperature)
