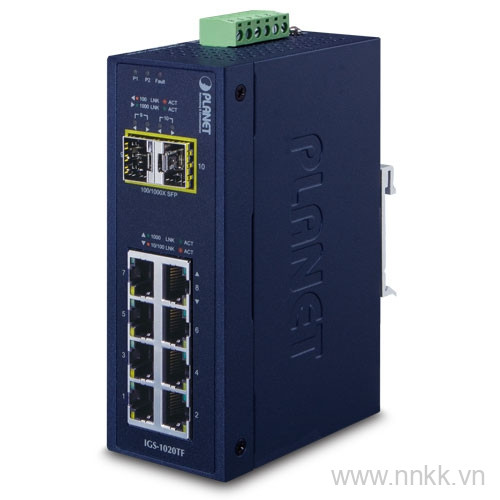

Switch công nghiệp Planet IGS-1020TF, 8 Port Gigabit +2 SFP

Copper Ports

8 x 100/1000BASE-T RJ45 TP
Auto-MDI/MDI-X, auto-negotiation

SFP/mini-GBIC Slots

2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX SFP

Switch Processing Scheme

Store-and-Forward

Switch Fabric

20Gbps (non-blocking)

Switch Throughput (packet per second)

14.88Mpps@64bytes

MAC Address Table

4K entries

Flow Control

Back pressure for half duplex
IEEE 802.3x pause frame for full duplex

Jumbo Frame

9216 bytes

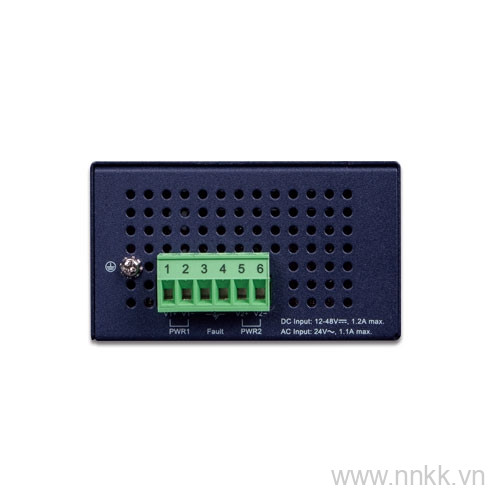

Connector

Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Alarm

Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V

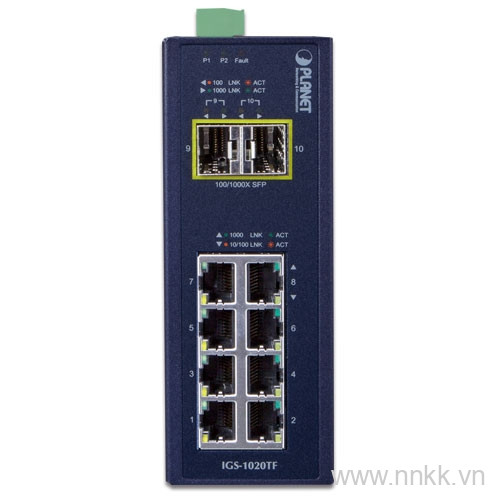

LED Indicator

3 x LED for System and Power:
Green: DC Power 1
Green: DC Power 2
Red: Power Fault
2 x LED for Per Copper Port (Port-1~Port-8):
Green: 1000 LNK/ACT
Orange:100 LNK/ACT
2 x LED for Per Mini-GBIC Interface (Port-9 and Port-10):
Green: 1000 LNK/ACT
Orange:100 LNK/ACT

ESD Protection

6KV DC

Enclosure

IP30 type metal case

Installation

DIN rail kit and wall-mount ear

Dimensions (W x D x H)

50 x 87 x 135 mm

Weight

540g

Power Requirements

DC 12~48V or AC 24V
Redundant power with polarity reverses protection function

Power Consumption/Dissipation

8.7 watts/29.69BTU

Cable

Twisted-pair
■ 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters
■ 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
■ 1000BASE-T: 4-pair UTP Cat. 5e, 6 up to 100 meters

Fiber-Optic Cable n
■ 1000BASE-SX:
　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m
■ 1000BASE-LX:
　9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 　
　kilometers (vary on SFP module)
■ 100BASE-FX:
　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to
　2 kilometers
　9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers
　(vary on SFP module)

Standards Compliance

IEEE 802.3 Ethernet/10BASE-T
IEEE 802.3u Fast Ethernet/100BASE-TX
IEEE 802.3ab Gigabit Ethernet/1000BASE-T
IEEE 802.3z Gigabit Ethernet/1000BASE-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.1p Cos

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall)
IEC 60068-2-27 (anti-shock)
IEC 60068-2-6 (anti-vibration)

Temperature

Operating: -40~75 degrees C
Storage: -40~75 degrees C

Humidity

Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)

IGS-1020TF

Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch (-40~75 degrees C)
