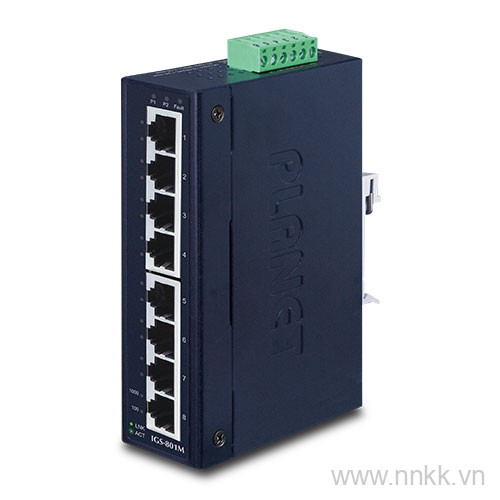

Swich công nghiêp 8 cổng Planet IGS-801M

Hardware Version

2

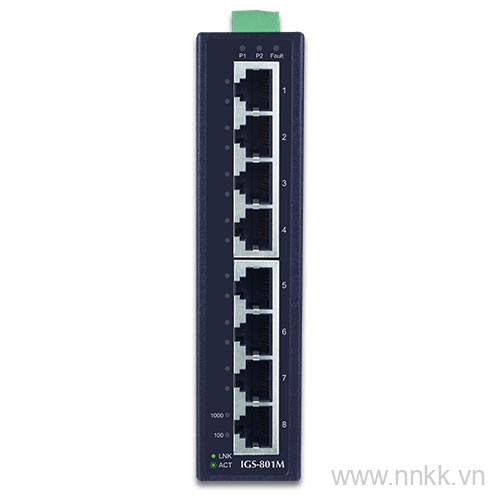

Copper Ports

8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port

Reset Button

< 5 sec: System reboot
> 5 sec: Factory default

Connector

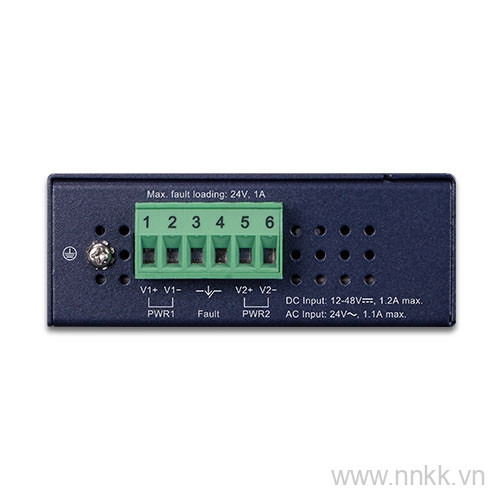

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ DC 24V

Dimensions (W x D x H)

135 x 87 x 32 mm, 1U height

Weight

472g

Power Requirements

DC 12 to 48V
AC 24V

Power Consumption/ Dissipation

4.5 watts/15BTU (System on)
10 watts/34BTU (Full loading)

ESD Protection

6KV DC

Enclosure

IP30 metal case

Installation

DIN-rail kit and wall-mount kit

LED

System:
Power 1, Power 2, Fault Alarm
Ports:
10/100 Link/Act
1000 Link/Act

Switch Architecture

Store-and-Forward

Switch Fabric

16Gbps/non-blocking

Switch Throughput@64Bytes

11.9Mpps

Address Table

8K entries

Shared Data Buffer

4.1 megabits

Flow Control

IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex

Jumbo Frame

10K bytes

Port Mirroring

TX/RX/both
Many-to-1 monitor

VLAN

802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP

Link Aggregation

IEEE 802.3ad LACP and static trunk
Supports 8 trunk groups with 8 ports per trunk

Spanning Tree Protocol

STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol

IGMP Snooping

IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups

MLD Snooping

MLD (v1/v2) snooping, up to 256 multicast groups

QoS

8 mapping ID to 8 level priority queues
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP field in IP packet
Traffic classification based, strict priority and WRR

Ring

Supports ERPS, and complies with ITU-T G.8032

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL

Port Security

IEEE 802.1X – Port-based authentication
Built-in RADIUS client to cooperate with RADIUS server
RADIUS/TACACS+ user access authentication

MAC Security

IP-MAC port binding
MAC filter
Static MAC address

Enhanced Security

DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard

Basic Management Interfaces

Web browser
Telnet
SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2, SNMP v3

System Management

Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer

Event Management

Remote/Local Syslog
System log

SNMP MIBs

RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

Standards Compliance

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring

Operating

Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

IGS-801M

8-Port 10/100/1000Mbps Managed Industrial Ethernet Switch
