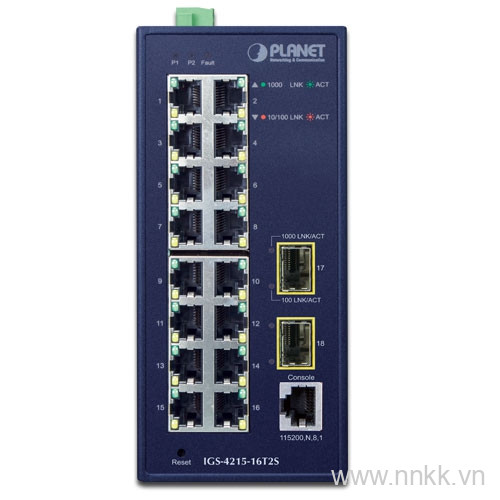

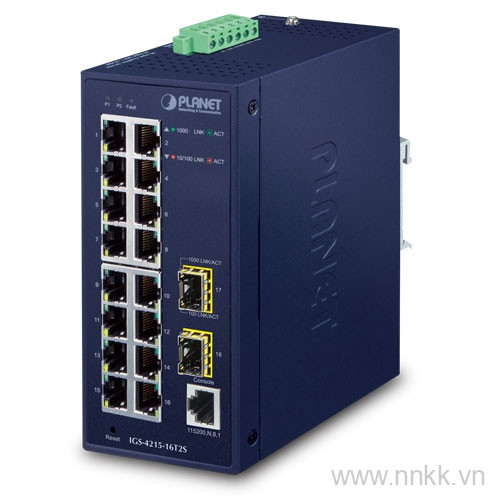

Swich công nghiêp 16 cổng PLANET IP30 (IGS-4215-16T2S) L2+

Copper Ports

16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

Gigabit SFP Slots

2 100/1000BASE-SX/LX/BX SFP interfaces

Console

IGS-4215-16T2S：1 RJ45 serial port (115200,8, N, 1)
IGS-4215-16T2S-U：1 Micro-USB female port (115200,8, N, 1)

RAM

128Mbytes

Flash Memory

16Mbytes

Reset Button

< 5 sec: System reboot
> 5 sec: Factory default

Connector

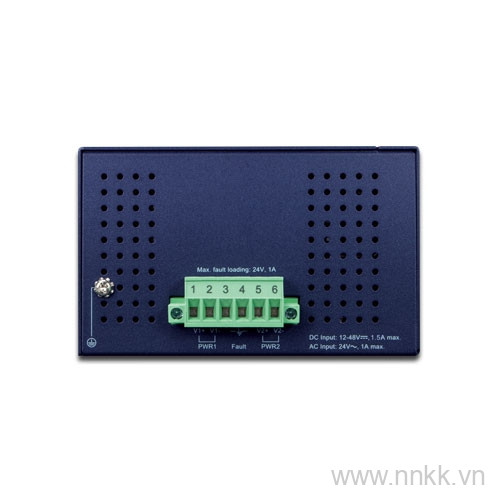

Removable 6-pin terminal block for power input
　Pin 1/2 for Power 1
　Pin 3/4 for fault alarm
　Pin 5/6 for Power 2

Alarm

One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V DC

Power Requirements

IGS-4215-16T2S：
Dual 12~48V DC
24V AC
IGS-4215-16T2S-U：
Dual 9~48V DC
24V AC

Power Consumption

IGS-4215-16T2S：
DC input:
Max. 3.4 watts/11.6BTU (System on)
Max. 12.5 watts/42.7BTU (Full loading)

AC input:
Max. 6 watts/20.5BTU (System on)
Max. 15 watts/51.2BTU (Full loading)

IGS-4215-16T2S-U：
DC input:
Max. 3.31 watts/11.3BTU (System on)
Max.10.41 watts/35.5BTU (Full loading)

AC input:
Max. 3 watts/10.2BTU (System on)
Max. 10 watts/34.1BTU (Full loading)

Dimensions (W x D x H)

66 x 107 x 152 mm

Weight

IGS-4215-16T2S：813g
IGS-4215-16T2S-U：829g

Enclosure

IP30 metal case

Installation

DIN-rail kit and wall-mount ear

ESD Protection

6KV DC

LED

System
　Green: Power 1
　Green: Power 2
　Red: Power Fault
Per 10/100/1000T RJ45 Ports
　Green: 1000 LNK/ACT
　Orange: 10/100 LNK/ACT
Per SFP Interface
　Green: 1000 LNK/ACT
　Orange: 100 LNK/ACT

Switch Architecture

Store-and-Forward

Switch Fabric

36Gbps (non-blocking)

Switch Throughput@64 bytes

26.79Mpps@ 64 bytes

MAC Address Table

8K entries

Shared Data Buffer

4.1Mbits

Flow Control

IEEE 802.3x pause frame for full duplex
Back pressure for half duplex

Jumbo Frame

10 Kbytes

Port Mirroring

TX/RX/Both
Many-to-1 monitor
Up to 4 sessions

VLAN

802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP

Link Aggregation

IEEE 802.3ad LACP and static trunk
Cisco ether-channel (Static Trunk)
Up to 8 trunk groups
Up to 8 ports per trunk group with 16Gbps bandwidth

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding

IGMP Snooping

IPv4 IGMP snooping v1, v2, v3
IGMP querier
Up to 256 multicast groups

MLD Snooping

IPv6 MLD snooping v1, v2, up to 256 multicast groups

QoS

Ingress/Egress Rate Limit per port bandwidth control
8-level priority for switching
　Port number
　802.1p priority
　DSCP/IP precedence of IPv4/IPv6 packets
　Typical network application
DSCP remarking

Ring

Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries

Port Security

IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication

MAC Security

IP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries

Enhanced Security

DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard

Basic Management Interfaces

Console; Telnet; Web browser; SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2, SNMP v3

System Management

Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer app

Event Management

Remote/Local Syslog
System log

SNMP MIBs

RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB

Regulatory Compliance

FCC Part 15 Class A
EN 55032
EN 55035
ICES-003 issue 7

Certification

EN50121-4

Stability Testing

IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP
IEEE 802.3az for Energy-Efficient Ethernet
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
ITU G.8032 ERPS Ring

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)

IGS-4215-16T2S

Industrial L2/L4 16-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C)

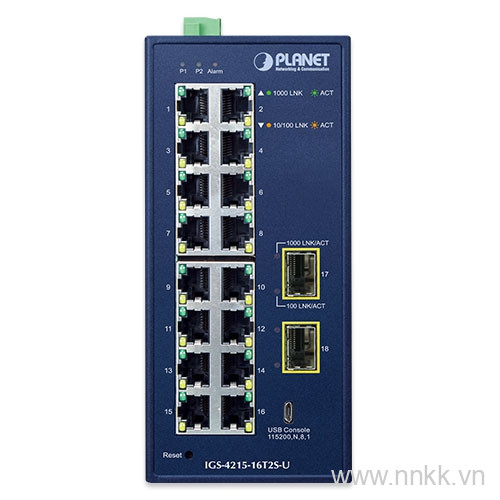

IGS-4215-16T2S-U

Industrial L2/L4 16-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch with USB Console (-40~75 degrees C)
