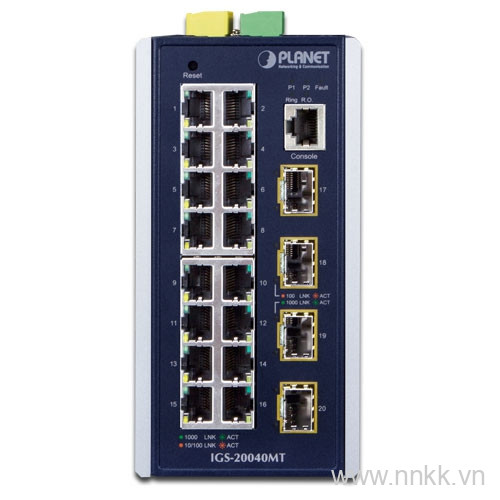

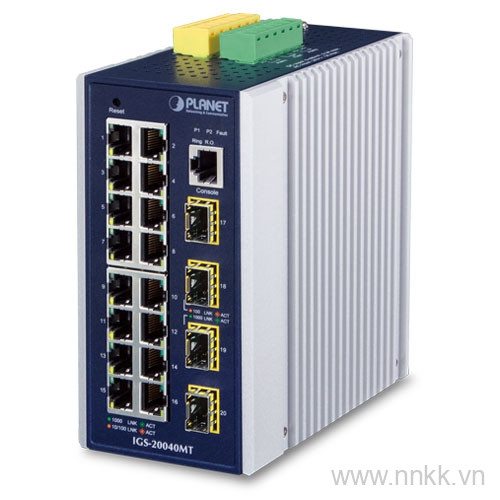

Swich công nghiêp 16 cổng Planet IGS-20040MT

Copper Ports

16 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports

SFP Slots

4 1000BASE-SX/LX/BX SFP interfaces (Port-17 to Port-20)
Compatible with 100BASE-FX SFP

Console

1 x RJ45 serial port (115200, 8, N, 1)

Switch Architecture

Store-and-Forward

Switch Fabric

40Gbps/non-blocking

Throughput (packet per second)

29.7Mpps@64Bytes

Address Table

8K entries, automatic source address learning and ageing

Shared Data Buffer

4Mbits

Flow Control

IEEE 802.3x pause frame for full duplex
Back pressure for half duplex

Jumbo Frame

9Kbytes

SDRAM

512Mbytes

Flash Memory

64Mbytes

Reset Button

< 5 sec: System reboot
> 5 sec: Factory Default

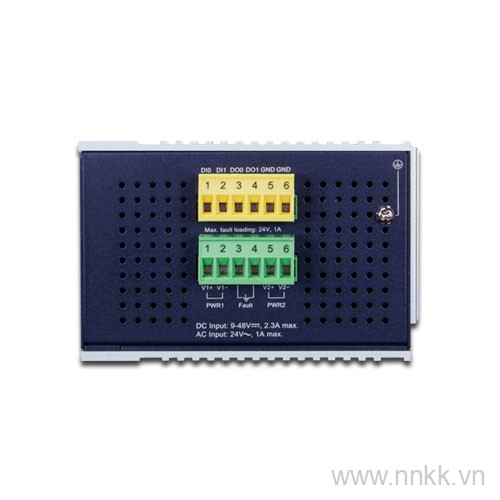

Connector

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 0 & DI 1; Pin 3/4 for DO 0 & DO 1; Pin 5/6 for GND

Alarm

One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V AC

Digital Input(DI)

2 Digital Input (DI):
　Level 0: -24V~2.1V (±0.1V)
　Level 1: 2.1V~24V (±0.1V)
　Input Load to 24V DC, 10mA max.

Digital Output (DO)

2 digital output:
　Open collector to 24VDC, 100mA

Enclosure

IP30 aluminum case

Installation

DIN-rail kit and wall-mount kit

Dimensions (W x D x H)

76.8 x 107.3 x 152 mm

Weight

1,043g

Power Requirements

DC 9V to 48V
AC 24V

Power Consumption

8 watts/27BTU (System on)
17 watts/58BTU (Full loading)

ESD Protection

6KV DC

LED Indicator

System:
　Power 1 (Green)
　Power 2 (Green)
　Fault Alarm (Green)
　Ring (Green)
　R.O. (Green)
Per 10/100/1000T RJ45 Port:
　1000 LNK/ACT (Green)
　10/100 LNK/ACT (Orange)
Per SFP Interface:
　1000 LNK/ACT (Green)
　100 LNK/ACT (Orange)

Port Configuration

Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Power saving mode control

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto negotiation status and trunk status.

Port Mirroring

TX/RX/Both
Many to 1 monitor

VLAN

802.1Q tag-based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/Static Trunk
Support 10 groups of 8-port trunk support

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol

IGMP Snooping

IPv4 IGMP (v1/v2/v3) Snooping
IPv4 IGMP Querier mode support
Up to 255 multicast Groups

MLD Snooping

IPv6 MLD (v1/v2) Snooping
IPv6 MLD Querier mode support
Up to 255 multicast Groups

Access Control List

IP-based ACL/MAC-based ACL
ACL based on:
　- MAC Address
　- IP Address
　- Ethertype
　- Protocol Type
　- VLAN ID
　- DSCP
　- 802.1p Priority
Up to 256 entries

Bandwidth Control

Per port bandwidth control
Ingress: 500Mbps ~1000Mbps
Egress: 500Mbps ~1000Mbps

QoS

Traffic classification based, strict priority and WRR
8-level priority for switching
　- Port Number
　- 802.1p priority
　- 802.1Q VLAN tag
　- DSCP/TOS field in IP Packet

Synchronization

IEEE 1588v2 PTP(Precision Time Protocol)
　- Peer-to-peer transparent clock
　- End-to-end transparent clock

IP Interfaces

Max. 8 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 software static routing
IPv6 software static routing

Basic Management Interfaces

Console; Telnet; Web browser; SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2, SNMPv3

System Management

Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility

SNMP MIBs

RFC-1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring

Operating

Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

IGS-20040MT

Industrial L2+ 16-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Switch
