Socket AM4
Hỗ trợ CPU
Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *
* Refer to www.asus.com for CPU support list
Chipset AMD B550
Hỗ trợ RAM 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
ECC Memory (ECC mode) support varies by CPU.
Cạc đồ họa VGA onboard
Âm thanh Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
Cạc mạng Realtek RTL8111H 1Gb Ethernet
Khe cắm trong Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

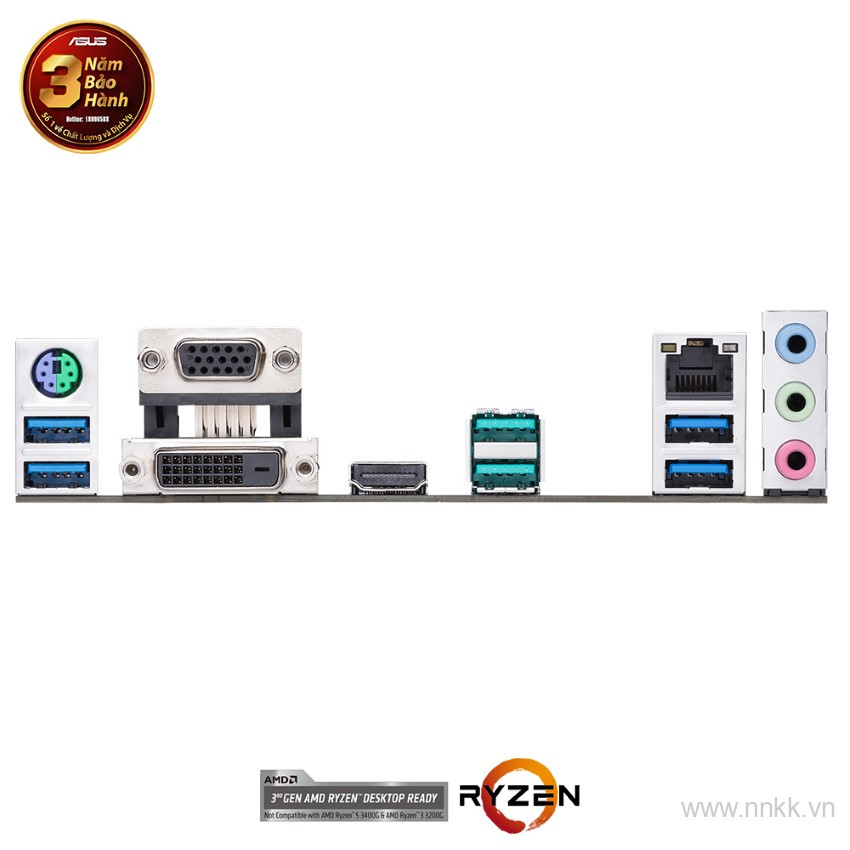

Cổng giao tiếp ngoài
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
Kích thước ATX
