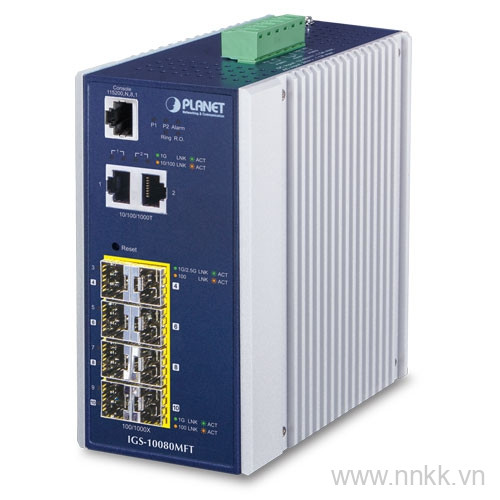

Industrial Managed Fiber Switch PLANET ( IGS-10080MFT) , 8 SFP + 2 RJ45 Gigabit

Copper Ports

2 10/100/1000BASE-T Ethernet interfaces (Ports 1 to 2)

SFP/mini-GBIC Slots

2 100/1000/2500BASE-X mini-GBIC SFP ports (Ports 3 to 4)
6 100/1000BASE-X mini-GBIC SFP ports (Ports 5 to 10)

SDRAM

128Mbytes

Flash Memory

64Mbytes

Reset Button

< 5 sec: System reboot
> 5 sec: Factory default

ESD Protection

6KV DC

EFT Protection

6KV DC

Enclosure

IP30 aluminum metal cas

Installation

DIN rail kit and wall-mount

Dimensions (W x D x H)

76.8 x 107.3 x 152 mm

Weight

1036g

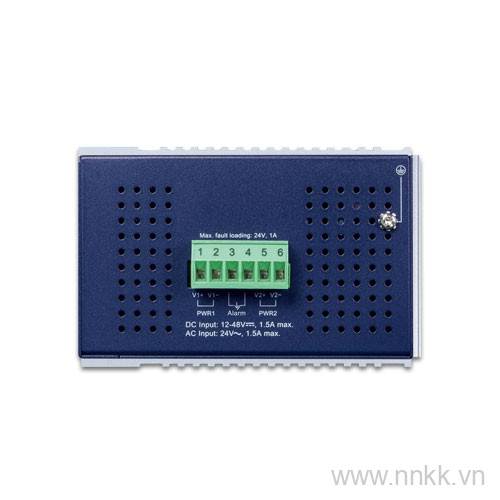

Power Requirements

DC 12 to 48V, AC 24V Power Adapter

Power Consumption

13.92 Watts/47.76BTU (Full loading)

LED Indicator

System:
　Power 1 (Green)
　Power 2 (Green)
　Alarm (Red)
　Ring (Green)
　R.0. (Green)
Per 10/100/1000T RJ45 Ports (Port 1 to port 2):
　10/100 LNK/ACT (Amber)
　1000 LNK/ACT (Green)
Per 100/1000/2500BASE-X SFP Interface (Port 3 to port 4):
　100 LNK/ACT (Amber)
　1G/2.5G LNK/ACT (Green)
Per 100/1000BASE-X SFP Interface (Port 5 to port 10):
　100 LNK/ACT (Amber)
　1000 LNK/ACT (Green)

Switch Architecture

Store-and-Forward

Switch Fabric

26Gbps/non-blocking

Throughput

19.34Mpps@ 64 bytes packet

Address Table

8K entries, automatic source address learning and aging

Shared Data Buffer

512 Kbytes

Flow Control

IEEE 802.3x pause frame for full duplex
Back pressure for half duplex

Jumbo Frame

9K bytes

Port Configuration

Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control

Port Status

Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status

Port Mirroring

TX/RX/both
1 to 1 monitor

VLAN

802.1Q tag-based VLAN, up to 4K VLAN groups
Q-in-Q tunneling
Private VLAN Edge
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/static trunk

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

IGMP Snooping

IGMP (v1/v2/v3) snooping
IGMP querier mode support
Up to 255 multicast groups

MLD Snooping

MLD (v1/v2) snooping
MLD querier mode support
Up to 255 multicast groups

Bandwidth Control

Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps

Ring

Supports ERPS, and complies with ITU-T G.8032
Supports Major ring and sub-ring
Recovery time < 10ms @ 3 units
Recovery time < 50ms @ 16 units

Synchronization

IEEE 1588v2 PTP (Precision Time Protocol)
　- Peer-to-peer transparent clock
　- End-to-end transparent clock

QoS

Traffic classification based, strict priority and WRR
8-level priority for switching
　- Port number
　- 802.1p priority
　- 802.1Q VLAN tag

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Up to 256 entries

Port Security

IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication

MAC Security

IP-MAC port binding
MAC filter
Static MAC address

Enhanced Security

DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard

IP Interfaces

Max. 8 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 software static routing
IPv6 software static routing

Basic Management Interfaces

Telnet/Web browser/SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2, SNMP v3

System Management

Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer

Event Management

Remote/Local Syslog
System log

Industrial Protocol

Modbus TCP for real-time monitoring in SCADA system

SNMP MIBs

RFC 1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
ITU-T G.8032 Ethernet Ring Protection Switching
RFC 768 UDP
RFC 783 TFTP
RFC 793 TCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 75 degrees C

Humidity

5 ~ 95% (non-condensing)

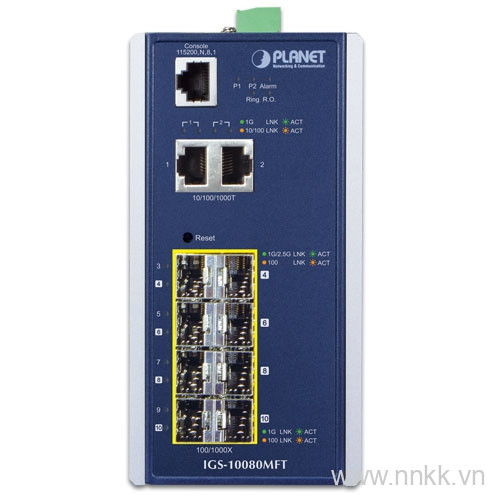

IGS-10080MFT

Industrial 6-Port 100/1000X SFP + 2-Port 1G/2.5G SFP + 2-Port 10/100/1000T Managed Switch
