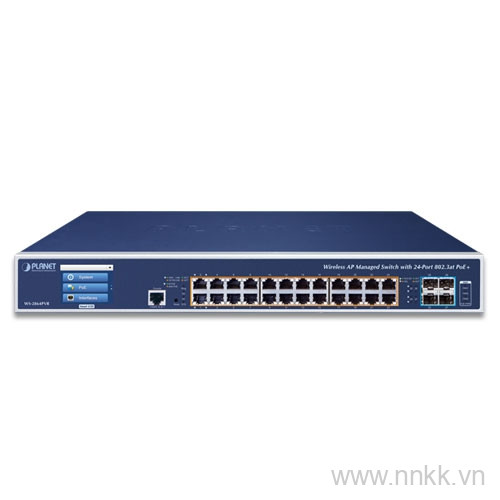

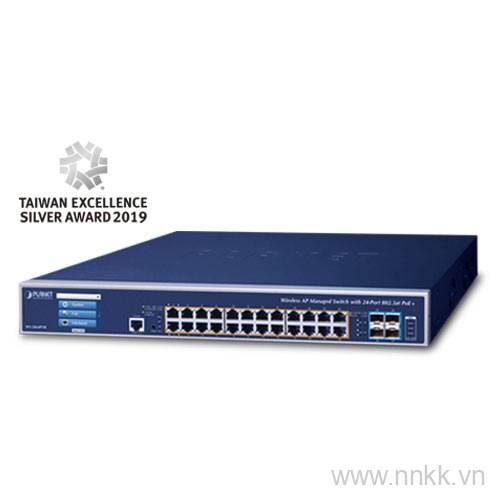

Bộ quản lý điều khiển Wifi AP PLANET WS-2864PVR, 24-port PoE

Copper Ports

24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

SFP/mini-GBIC Slots

4 10GBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver

PoE Injector Port

24 ports with 802.3at/af PoE injector function with Port-1 to Port-24

Console

1 x RJ45 serial port (115200 , 8, N, 1)

DRAM

512Mbytes

Flash

64Mbytes

Reset Button

< 5 sec: System reboot
> 5 sec: Factory default

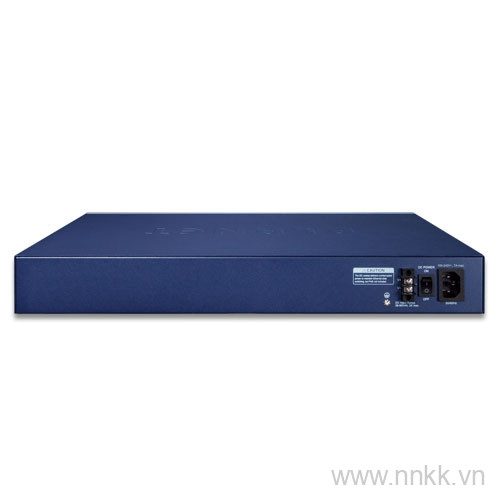

Power Requirements

100~240V AC, 50/60Hz

Power Consumption (Full Loading)

AC: Max. 488 watts/1665.13 BTU
DC: Max. 36.6 watts/124.88 BTU

ESD Protection

6KV DC

EFT Protection

4KV

Dimensions (W x D x H)

440 x 300 x 56 mm, 1.25U height

Weight

4675g

LED

System:
　SYS (Green)
　AC/PWR (Green)
　DC (Green)
　Fan1/2/3 Alert ( Red )
　PoE PWR Alert ( Red )
PoE Ethernet Interfaces (Port-1 to Port-24):
　PoE-in-use (Orange)
Ethernet Interfaces (Port-1 to Port-24):
　1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
10G SFP+ Interfaces (Port-25 to Port-28):
　1G/2.5G (Green), 10G (Orange)

Switch Architecture

Store-and-Forward

Switch Fabric

128Gbps/non-blocking

Throughput

95.23Mpps@ 64Bytes packet

Address Table

16K entries, automatic source address learning and aging

Shared Data Buffer

32Mbits

Flow Control

IEEE 802.3x pause frame for full duplex
Back pressure for half duplex

Jumbo Frame

10KB

Maximum Managed APs

64

Maximum AP Groups

10

Maximum APs per AP Group

64

Wireless Encryption/Security

■ WEP encryption security
■ WPA Personal / Enterprise (TKIP / AES)
■ WPA2 Personal / Enterprise (TKIP / AES)
■ Enterprise Class 802.1x

AP Auto Discovery

Supports AP auto discovery

Dashboard

Summarized system overview includes online AP and activated client number

SSID/RF Profile

Allows multiple wireless profiles creation and maintenance

Cluster Management

Allows AP grouping for bulk provisioning and batch upgrading

Bulk AP Provisioning

Supports bulk AP provisioning with user-defined profiles

Bulk AP Firmware Upgrade

Supports bulk AP firmware upgrade

Coverage Heat Map

Enables real signal coverage of managed AP reflecting on the uploaded zone maps

Status Monitoring

Real-time traffic statistics reporting of AP and activated clients

Graphical Statistics

Real-time and historical visibility of traffic flow

Profile Backup/Restore

Provides SSID, radio profile backup/restore

SSIDs-to-VLANs Mapping

Allows to configure SSIDs-to-VLANs mapping in supported APs

Indoor AP

IAP-1800AX
IAP-2400AX
WDAP-C7210E(V2)
WDAP-C1800AX(V2)
WDAP-W1800AXU
WDAP-C7210E
WDAP-W1200E
WDAP-C7200E
WDAP-W750E
WNAP-C3220E
WNAP-W2200UE

Outdoor AP

WDAP-1800AX
WDAP-850AC
WDAP-802AC
WBS-512AC
WBS-502N
WBS-202N
WAP-552N
WAP-252N
WDAP-702AC
WBS-502AC
WBS-500N
WBS-200N
WAP-500N
WAP-200N

Remarks [*]

The supported AP models may be changed after a firmware upgrade.

PoE Standard

IEEE 802.3at PoE Plus, PSE

PoE Power Supply Type

End-span

PoE Power Output

Per port 54V DC, max. 36 watts

Power Pin Assignment

End-span : 1/2(-), 3/6(+)

PoE Power Budget

400 watts (max.) @ 25 degrees C

PoE Ability

PD @ 7 watts: 24 units
PD @ 15.4 watts: 24 units
PD @ 30.8 watts: 13 units

Active PoE device alive detects

Yes

PoE Power Recycle

Yes, daily or predefined schedule

PoE Schedule

4 schedule profiles

PoE Extend Mode

Yes, max. 160 to 200 meters

PoE System Management

System PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm

PoE Port Management

Port Enable/Disable/Schedule
Port Priority

IP Interfaces

Max. 128 VLAN interfaces

Routing Table

Max. 128 routing entries

Routing Protocols

IPv4 OSPFv2
IPv4 hardware static routing
IPv6 hardware static routing

Port Configuration

Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status

Port Mirroring

TX/RX/Both
Many-to-1 monitor

VLAN

IEEE 802.1Q tag-based VLAN, up to 255 VLAN groups
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 4K VLAN groups, out of 4095 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP (static trunk)
Supports 14 trunk groups with 4 ports per trunk

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

IGMP Snooping

IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP Querier mode support

MLD Snooping

MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support

Bandwidth Control

Per port bandwidth control
　Ingress: 100Kbps~1000Mbps
　Egress: 100Kbps~1000Mbps

Ring

Support ERPS, complies with ITU-T G.8032
Recovery time < 10ms with 3 units
Recovery time < 50ms with 16 units

QoS

Traffic classification based, strict priority and WRR
8-level priority for switching
　Port number
　802.1p priority
　802.1Q VLAN tag
　DSCP/TOS field in IP packet

Access Control List

IP-based ACL/MAC-based ACL
Up to 256 entries

Security

Port Security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level

AAA

RADIUS client
TACACS+ client

Network Access Control

IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication

Basic Management Interfaces

Console; Telnet
Web browser
SNMP v1, v2c;
2.4-inch color LCD touch screen

Secure Management Interfaces

SSHv2, TLSv1.2, SNMPv3

System Management

Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility

Event Management

Remote syslog
Local system log
SMTP

SNMP MIBs

RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
ITU-T G.8032 ERPS Ring

Operating

Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Storage<
