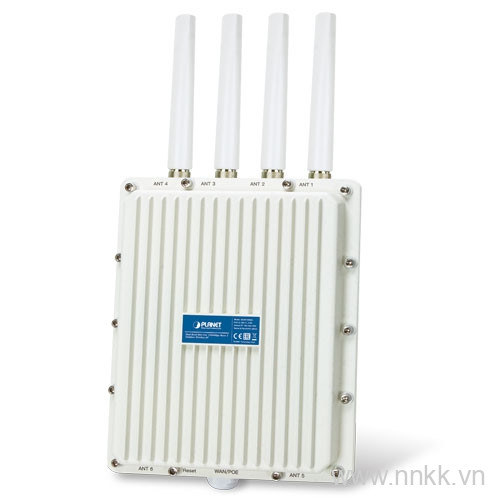

Bộ phát sóng WiFi ngoài trời Planet WDAP-850AC - 2 băng tần 1200Mbps

Standard Support

IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control

Material

Aluminum

Dimensions (W x D x H)

231 x 80 x 295 mm

Weight

2.3kg

Power Requirement

48V 0.5A, IEEE 802.3at PoE+

Power Consumption (max.)

< 30W

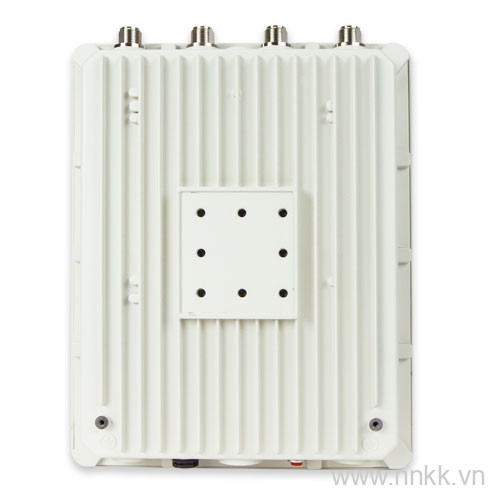

Mounting Type

Mast mounting

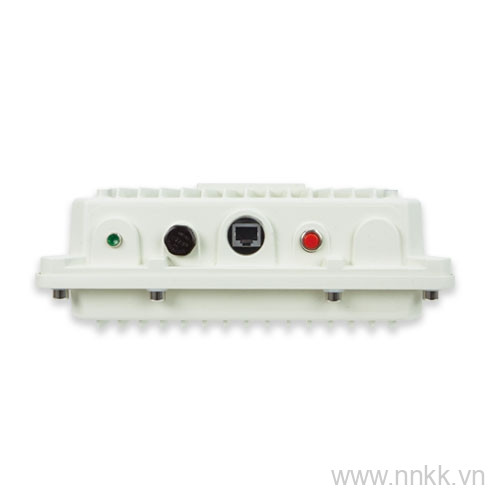

Interface

Wireless IEEE802.11a/b/g/n/ac, 2T2R
PoE WAN: 1 x 10/100/1000BASE-T, auto-MDI/MDIX, 802.3at PoE In

Button

Reset button

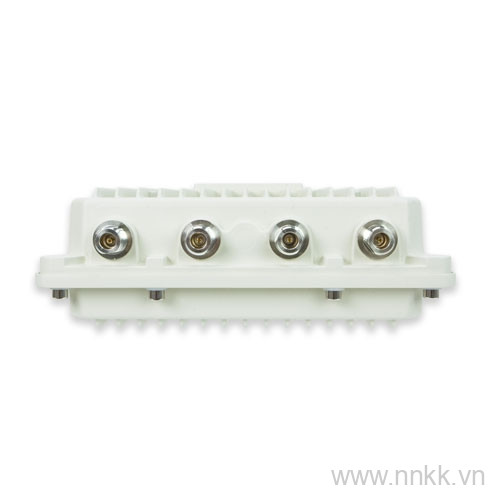

Antenna

Built-in four N-type connectors

Data Rate

IEEE 802.11b: up to 11Mbps
IEEE 802.11a/g: up to 54Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbps
802.11ac (VHT20): Up to 173.3Mbps
802.11ac (VHT40): Up to 400Mbps
802.11ac (VHT80): Up to 867Mbps

Media Access Control

CSMA/CA

Modulation

802.11ac: OFDM (BPSK/ QPSK/ 16QAM/ 64QAM/ 256QAM)
802.11a/g/n: OFDM (BPSK/ QPSK/ 16QAM/ 64QAM)
802.11b: DSSS (DBPSK/ DQPSK/ CCK)

Frequency Band

2.4GHz:
FCC: 2.412~2.462GHz
ETSI: 2.412~2.472GHz

5GHz:
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz

Operating Channels

2.4GHz:
FCC: 1~11 Channels
ETSI: 1~13 Channels

5GHz:
FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 Channels)
ETSI: 36, 40, 44, 48, 100, 104, 108, 112, 116, 132, 136, 140 (12 Channels)

5GHz channel list may vary in different countries depending on their regulations.

Max. Transmit Power (dBm)

FCC: up to 29 ± 1dBm
ETSI: < 20dBm (EIRP)

Receiver Sensitivity (dBm)

Operating Temperature

-40~70 degrees C

Operating Humidity

10~90% (non-condensing)

IP Level

IP67

ESD Protection

±8kV air gap discharge
±4kV contact discharge

Surge Protection

±20kV

Regulatory

CE, RoHS

LAN

Static IP / DHCP Client
Supports IP-MAC binding

WAN Type (GW/WISP mode)

• Static IP
• Dynamic IP
• PPPoE

Wireless Modes

• Access Point
• Gateway
• Repeater
• Super WDS
• WISP

Channel Width

20MHz, 40MHz, 80MHz

Encryption Type

64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X

Wireless Security

Wireless Security

Max. SSIDs

8 ( 4 per radio )

Max. Wireless Clients

128 ( 64 per radio )

Max. WDS Peers

4

Wireless QoS

Supports Wi-Fi Multimedia (WMM)

Wireless Advanced

Auto channel selection
5-level transmit power control (100%, 75%, 50%, 25% and 12.5%)
Client limit control, coverage threshold
Distance control (Auto Ack Timeout)
Wi-Fi channel analysis chart

Status Monitoring

Device status, wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server

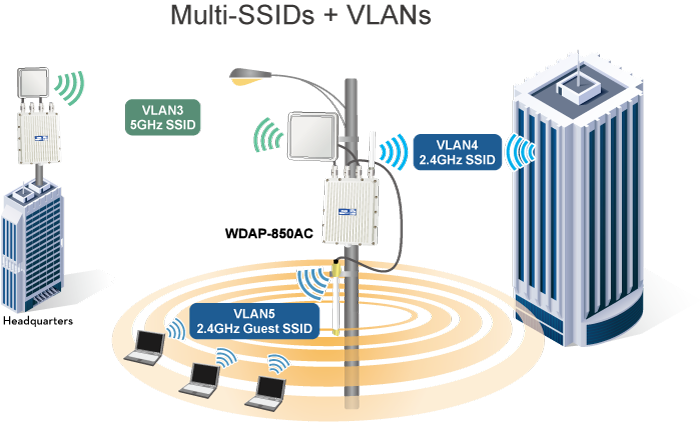

VLAN

IEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping up to 4 SSIDs

Self-healing

Supports auto reboot settings per day/hour

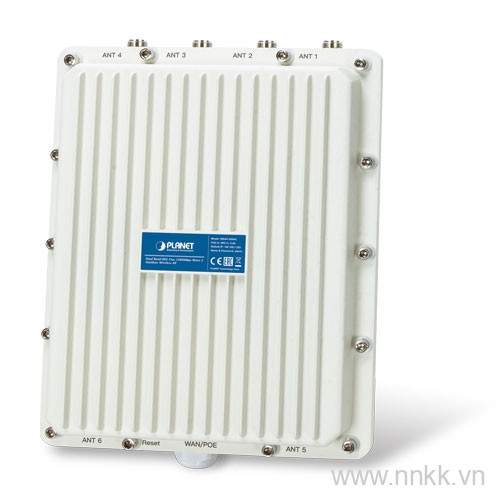

WDAP-850AC

Dual Band 802.11ac 1200Mbps Wave 2 Outdoor Wireless AP
