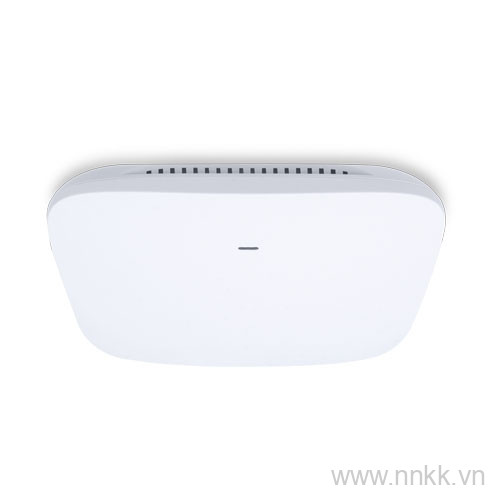

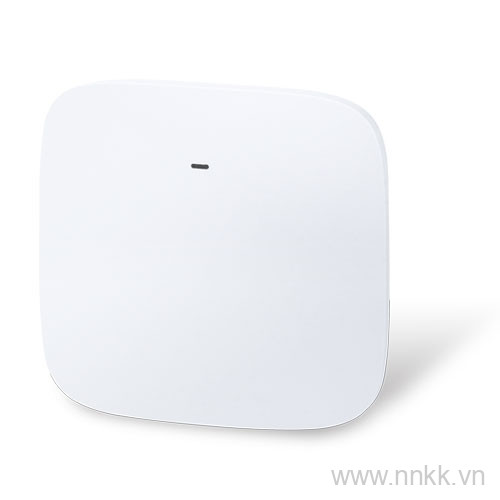

Bộ phát sóng Wifi AP Indoor PLANET WDAP-C1800AX, 1800Mbps, băng tần kép kiểu gắn trần

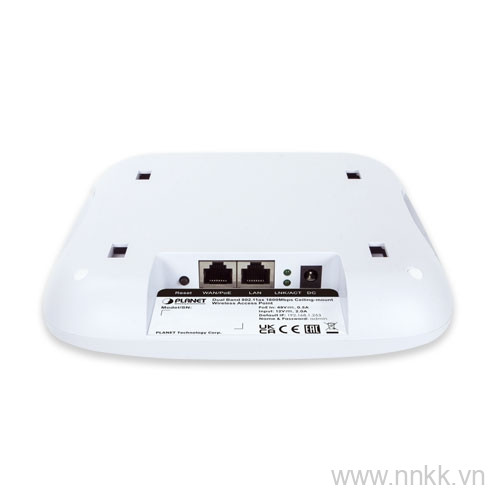

Interfaces

LAN
2 x 10/100/1000BASE-T RJ45 port
Auto-negotiation and auto MDI/MDI-X

Antennas

Gain: 4 x Internal 4dBi antenna (2.4G x2, 5G x2)

Reset Button

Reset button on the rear side (Press over 5 seconds to reset the device to factory default)

LED Indicators

Power, SYS

Dimensions (W x D x H)

186 x 186 x 35.8 mm

Weight

380 ± 5g

Power Requirements

48V DC IN, 0.5A, IEEE 802.3at PoE+ (WAN/PoE were changed port)
12V DC IN, 2.0A from DC Jack (5.5 x 2.1mm)

Power Consumption

< 15W

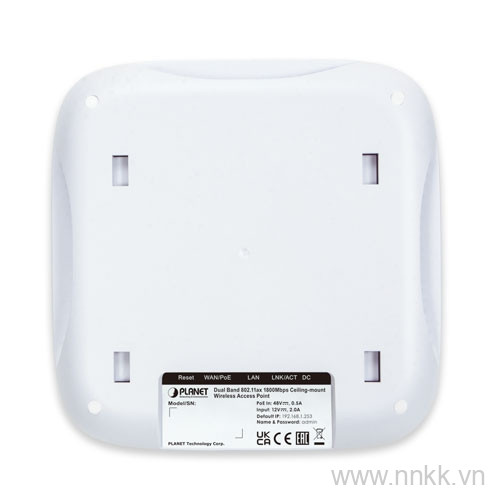

Mounting

Ceiling Mount

Standard

IEEE 802.11ax
IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control
IEEE 802.11k, 802.11v, and 802.11r

Media Access Control

CSMA/CA

Data Modulation

802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM)
802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)

Band Mode

2.4GHz / 5GHz concurrent mode

Frequency Range

2.4GHz:
FCC: 2.412~2.462GHz
ETSI: 2.412~2.472GHz
5GHz:
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz

Operating Channels

ETSI:
2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels)
5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 Channels)
FCC:
2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 Channels)
5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157,161,165 (24Channels)
5GHz channel list may vary in different countries according to their regulations.

Max. Transmit Power (dBm)

FCC: up to 20 ± 1dBm
ETSI: < 19dBm (EIRP)

Receive Sensitivity

LAN

Static IP / *Dynamic IP

WAN

Static IP
Dynamic IP
PPPoE/PPTP/L2TP

Wireless Mode

Access Point
Gateway
Repeater

Channel Width

20MHz, 40MHz, 80MHz

Encryption Security

WPA3 Personal, WPA2/WPA3 Personal, WPA2 Personal (AES), WPA2 Personal (TKIP), WPA2 Personal (TKIP+AES), WPA/WPA2 Personal (AES), WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES), WPA2 Enterprise, WPA/WPA2 Enterprise

Wireless Security

Enable/Disable SSID Broadcast
Wireless Max. 32 MAC address filtering
User Isolation

Max. SSIDs

8 (4 per radio)

Max. Clients

150 (100 is suggested, depending on usage)

Wireless QoS

Supports Wi-Fi Multimedia (WMM)

Wireless Advanced

Auto Channel Selection
5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%)
Client Limit Control, Coverage Threshold
*Wi-Fi channel analysis chart
Seamless Roaming
Beamforming
BSS Coloring

Status Monitoring

Device status, wireless client List
PLANET Smart Discovery
*DHCP client table
System Log supports remote syslog server

VLAN

*IEEE 802.1Q VLAN (VID: 1~4094)
*SSID-to-VLAN mapping to up to 4 SSIDs

Self-healing

Supports auto reboot settings per day/hour

Management

Remote management through PLANET DDNS/ Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
Supports Captive Portal, RADIUS Server/Client

Central Management

Applicable controllers: NMS-500, NMS-1000V, *PLANET CloudViewer

Temperature

Operating: -20~ 55 degrees C
Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing)

Regulatory

CE, RoHS

Remarks [*]:

The feature will be supported through firmware/system upgrade.

WDAP-C1800AX

Dual Band 802.11ax 1800Mbps Ceiling-mount Wireless Access Point w/802.3at PoE+ & 2 10/100/1000T LAN Ports
