Bộ chuyển đổi quang điện chuẩn công nghiệp PLANET PLANET IP30 Industrial 10/100/1000BASE-T to 100/1000BASE-LX Converter

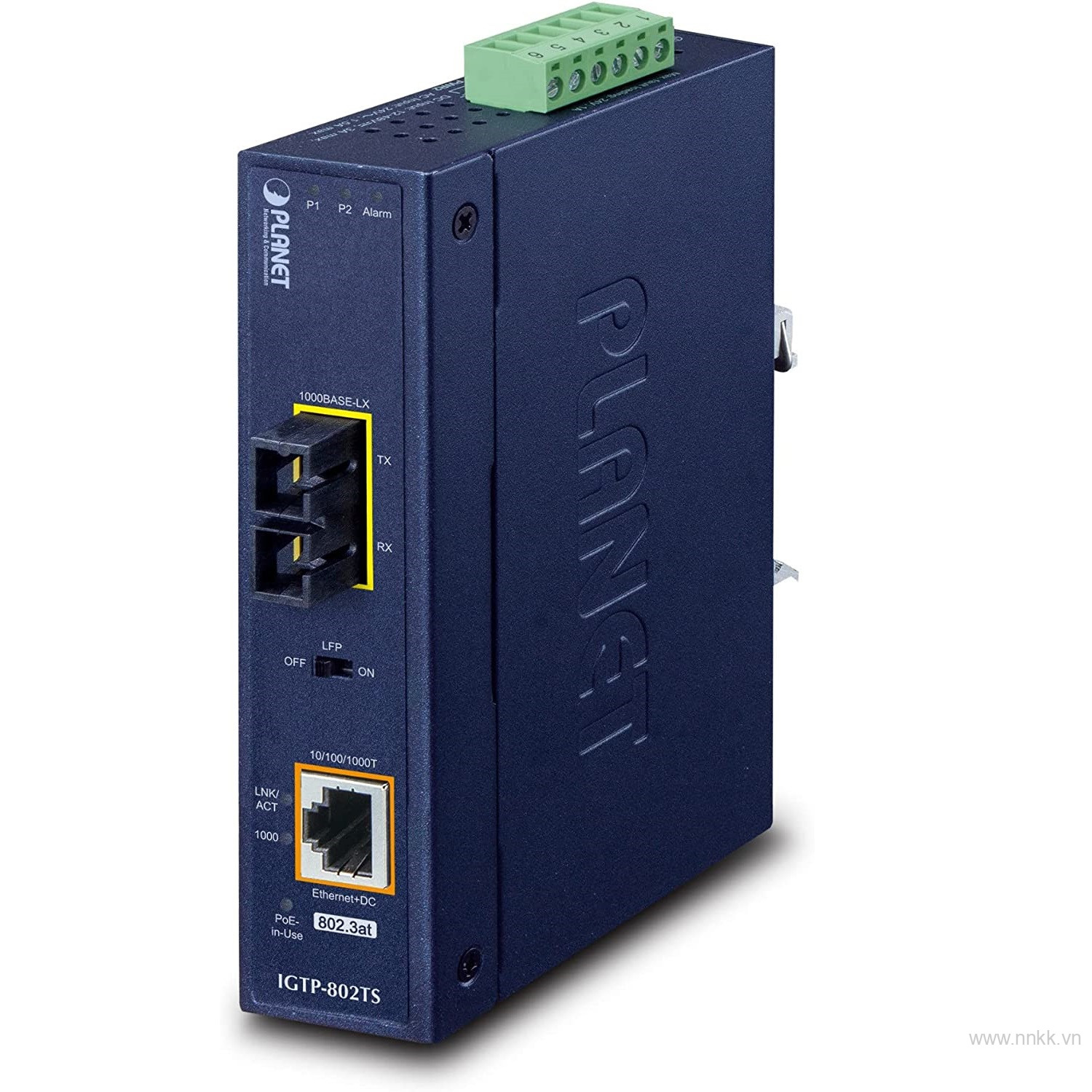

1000BASE-X to 10/100/1000BASE-T PoE+ Media Converter PLANET IGTP-802TS

Physical Port

• 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af /802.3at PoE+ Injector
• 1 1000BASE-SX/LX SC Fiber interface
• Power over Ethernet
• Complies with IEEE 802.3at/af PoE Plus end-span PSE
• 1 IEEE 802.3at/af device powered
•  Supports PoE Power up to 30.8 watts for PoE port
• Provides DC 52V power over RJ45 Ethernet cable to PD with Ethernet port
• Auto-detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
•  Remote power feeding up to 100m
• IEEE 802.3at/af splitter devices compatible

Layer 2 Features

•  Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

Industrial Case and Installation

• IP30 metal case
• DIN-rail or wall-mount design
• 12 ~ 48V DC/24V AC redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
• Supports 6000 VDC Ethernet ESD protection
• Operating temperature: -40 to 75 degrees C
