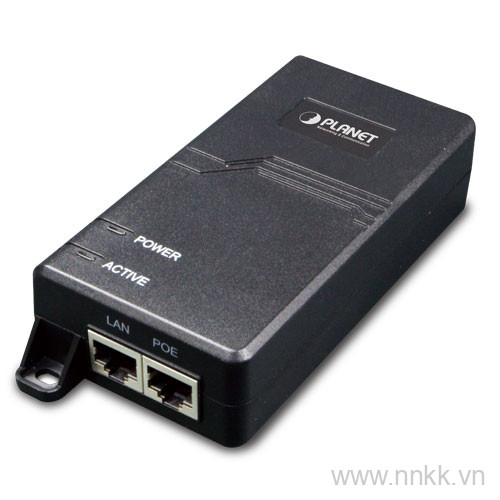

Adapter đổi nguồn Ethenet thành POE Planet POE-172

Interface

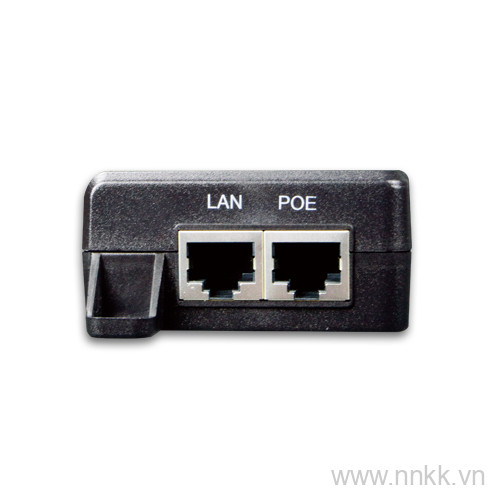

LAN: 1 x RJ45 STP, “Data” Input Port
PoE: 1 x RJ45 STP, “Data + Power” Output Port

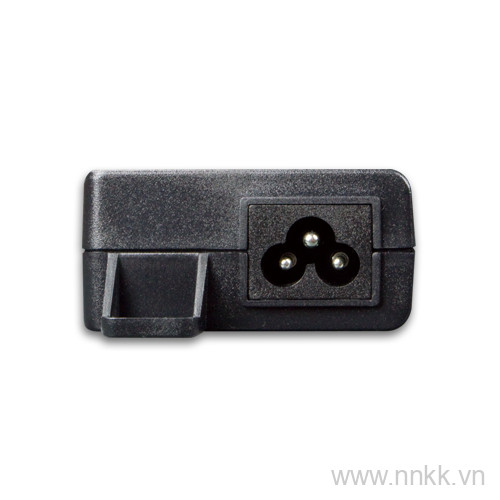

AC Connector: 1 x AC input power socket, IEC-320 C6

Network Cable

Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
802.3af/at PoE (15W/30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)

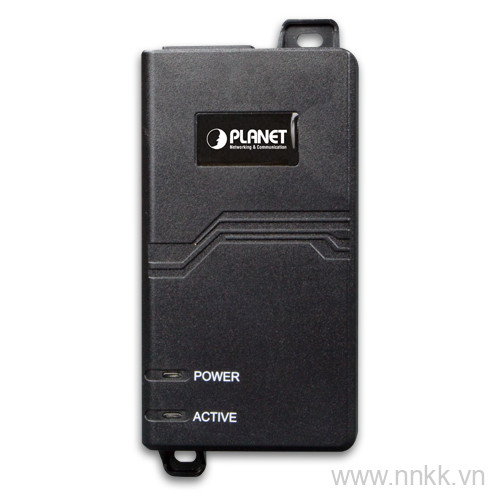

LED Indicator

System: Power x 1 (green)
PoE Port: Active, PoE ready/in-use x 1 (green)

Data Rate

10/100/1000Mbps

Dimensions (W x D x H)

115 x 62.5 x 31 mm

Weight

235g

Unit Output Voltage

DC 56V, 1.08A

Power Requirements

100-240V AC @50/60Hz, 1.5A max.

Power Consumption

60 watts max.

Operating Temperature

0 ~ 50 degrees C

Storage Temperature

-10 ~ 70 degrees C

Operating Humidity

5 ~ 95%, relative humidity, non-condensing

Storage Humidity

5 ~ 95%, relative humidity, non-condensing

PoE Standard

Ultra PoE over 4-pair UTP cable,
IEEE 802.3at Power over Ethernet Plus End-span/Mid-span PSE

PoE Power Supply Type

End-span + Mid-span

Power Pin Assignment

Pair 1 End-span: 1/2 (+), 3/6 (-)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)

PoE Power Output

DC 56V/60-watt PoE via 4-pair
DC 56V/30-watt PoE via 2-pair

Standards Compliance

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet

Regulatory Compliance

FCC Part 15 Class B, CE

POE-172

Single-Port 10/100/1000Mbps 60W Ultra PoE Injector
