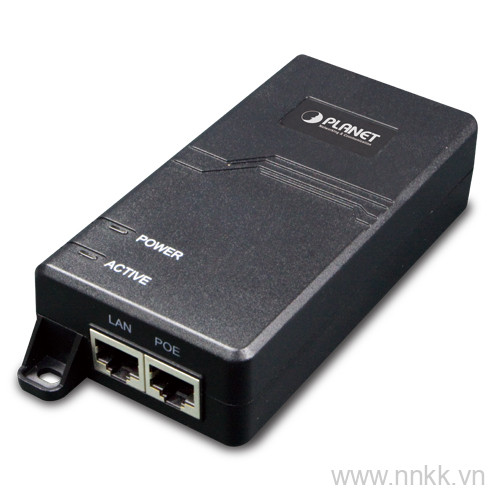

Adapter đổi nguồn Ethenet thành POE Planet POE-163

Interface

"Data" Input Port: 1 x RJ45 STP
"PoE (Data + Power)" Output Port: 1 x RJ45 STP
AC Input Power Socket: 1

LED Indicator

System: Power x 1 (Green)
PoE Port: Active, PoE ready-in-use x 1 (Green)

Network Cable

10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100M (328ft)
100BASE-TX: 2-pair UTP Cat. 3, 4, 5, up to 100M (328ft)
1000BASE-T: 2-pair UTP Cat. 5, 5e, 6 up to 100M (328ft)
EIA/TIA-568 100-ohm STP (100m)

Data Rate

10/100/1000Mbps

Dimensions (W x D x H)

115 x 62.5 x 31 mm

Weight

185g

Unit Output Voltage

DC 50-54V, 0.6A

Power Requirements

100-240V AC, 50/60Hz, 0.75A

Power Consumption

30 watts max.

Number of Devices that can be powered

1

Operating Temperature

0 ~ 50 degrees C

Storage Temperature

-10 ~ 70 degrees C

Operating Humidity

5 ~ 95%, relative humidity, non-condensing

Storage Humidity

5 ~ 95%, relative humidity, non-condensing

PoE Standard

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Output

DC 50-54V/30 watts

PoE Power Supply Type

Mid-span

Power Pin Assignment

4/5(+), 7/8(-)

Standards Compliance

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet Plus
IEEE 802.3af Power over Ethernet

Regulatory Compliance

FCC Part 15 Class B, CE

POE-163

IEEE 802.3at Gigabit High Power over Ethernet Injector (10/100/1000Mbps, Mid-span, 30 watts)
