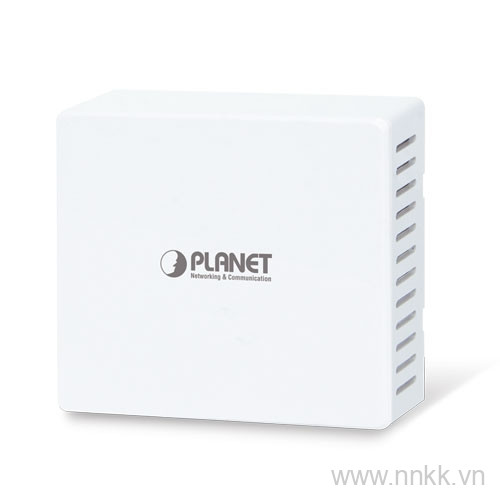

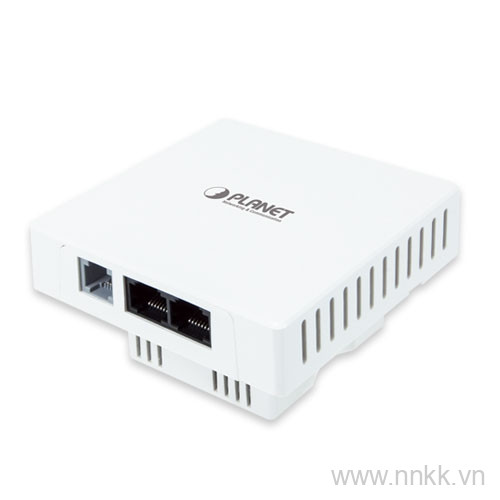

Bộ phát sóng WIFI Planet WDAP-W1200E 2 băng tần kiểu gắn tường

Interfaces

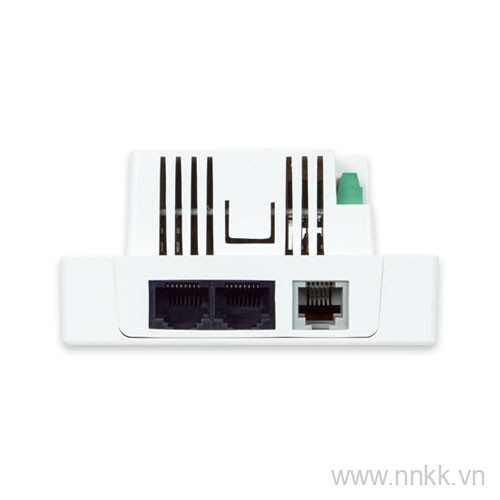

LAN
2 x 10/100/1000BASE-TX RJ45 port
Auto-negotiation and auto MDI/MDI-X

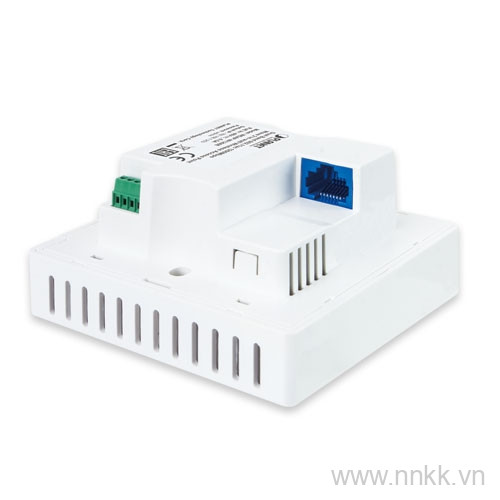

PoE Port
1 x 10/100/1000Mbps auto MDI/MDI-X RJ45 port (rear panel)
※ IEEE 802.3af/at PD port

RJ11 Port
Six-position four-conductor (6P4C) modular jack

Antennas

Gain: 4 x 2dBi antenna

Button

Reset button (Press over 10seconds to reset the device to the factory default)

LED Indicators

LAN1/LAN2/WAN/SYS

Dimensions (W x D x H)

86 x 45 x 86 mm

Weight

168 ± 5g

Power Requirements

48V DC IN, 0.5A, IEEE 802.3af/at PoE+

Power Consumption

< 8W

Mounting

In-wall mount

Standard

IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control

Media Access Control

CSMA/CA

Data Modulation

802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)

Band Mode

2.4G / 5G concurrent mode

Frequency Range

2.4GHz:
FCC: 2.412~2.462GHz
ETSI: 2.412~2.472GHz

5GHz:
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz

Operating Channels

FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 channels)
ETSI: 36, 40, 44, 48, 100, 104, 108, 112, 116, 132, 136, 140 (12 channels)
5GHz channel list will vary in different countries according to their regulations.

RF Power

<20dBm (EIRP)

Receive Sensitivity

LAN

Static IP/DHCP Client
Supports IP-MAC binding

WAN

• Static IP
• Dynamic IP
• PPPoE

Wireless Mode

• Access Point
• Gateway
• WISP
• Repeater
• Super WDS

Channel Width

20MHz, 40MHz, 80MHz

Encryption Security

64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X

Wireless Security

Enable/Disable SSID Broadcast
Wireless – filtering of max. 32 MAC addresses
User Isolation

Max. SSIDs

8 ( 4 per radio)

Max. Clients

128 (100 is suggested, depending on usage)

Max. WDS Peers

4

Wireless QoS

Supports Wi-Fi Multimedia (WMM)

Wireless Advanced

Auto channel selection
5-level transmit power control (100%, 75%, 50%, 25%, 12.5%)
Client limit control, coverage threshold
Wi-Fi channel analysis chart
Fast Roaming

Status Monitoring

Device status, wireless client list
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server

VLAN

IEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping to up to 4 SSIDs

Self-healing

Supports auto reboot settings per day/hour

Management

Remote management through PLANET DDNS/Easy DDNS
Configuration backup and restoration
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
SNMP v1/v2c/v3 support, MIB I/II, Private MIB

Central Management*

Applicable controllers: NMS-500/NMS-1000V, WS-1232P, WS-2864PVR
*The feature will be supported through firmware/system upgrade.

Temperature

Operating: -20 ~ 55 degrees C
Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 95% (non-condensing)

Regulatory

CE, RoHS

WDAP-W1200E

Dual Band 802.11ac 1200Mbps Wave 2 In-wall Wireless Access Point (EU Type, 802.3at PoE, 3 x 10/100/1000T LAN Ports, 1 x RJ11 Port )
